INTRODUCTION
The main components of the DFLIFT boom lift are all world-class brands: original Cummins engine, Denmark Danfoss hydraulic pump station, Italy Brevini reducer, Germany IMF control system. The quality is reliable and the price is low. The features are four-wheel drive, wide-surface tire design, 45% climbing ability, large horizontal ductility, wide operating range, and high work efficiency.
FEATURES
- Components adopt world-class brands

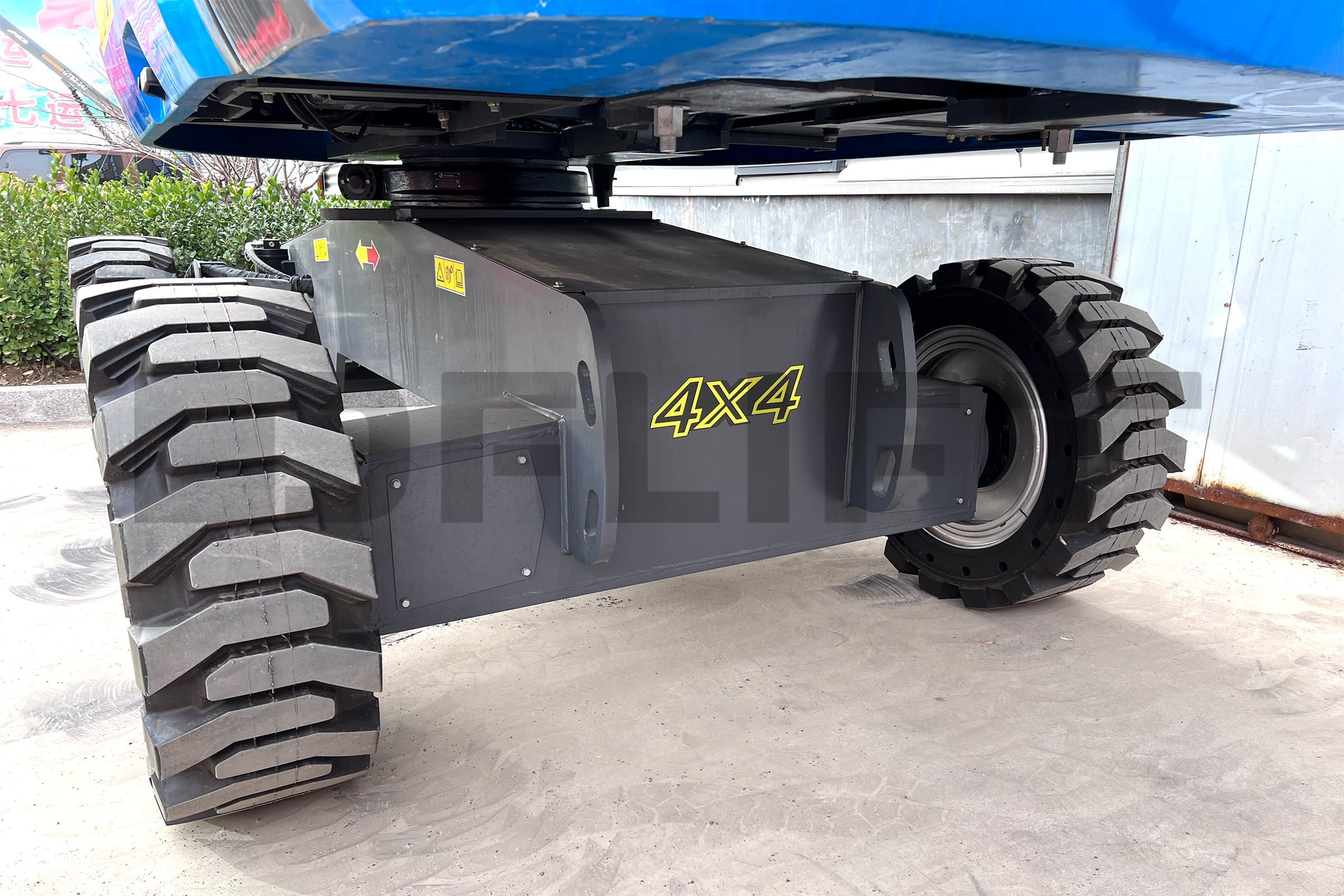

- 45% gradeability, four-wheel drive, widened surface solid tires
- 360° continuous rotation, 160° platform rotation
- Original Cummins engine, large capacity fuel tank
Parameters Table
| Model | RL16 | RL20 | RL30 | RL34 | RL40 | RL44 | RL48 | RL63 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | |
| Working height maximum | m | 16 | 52′ 6″ | 20 | 65′ 7″ | 30 | 98′ 5″ | 34 | 111′ 7″ | 40.4 | 132′ 7″ | 44 | 144′ 4″ | 48 | 157′ 6″ | 63 | 206′ 8″ |
| Platform height maximum | m | 14 | 45′ 11″ | 18 | 59′ 1″ | 28 | 91′ 10″ | 32 | 104′ 12″ | 14 | 45′ 11″ | 18 | 59′ 1″ | 46 | 150′ 11″ | 61 | 200′ 2″ |
| Horizontal outreach maximum | m | 12.6 | 41′ 4″ | 15 | 49′ 3″ | 20.6 | 67′ 7″ | 20 | 65′ 7″ | 24 | 78′ 9″ | 24 | 78′ 9″ | 23.6 | 77′ 5″ | 26 | 85′ 4″ |
| Length (stowed) | m | 8.55 | 28′ 1″ | 9.07 | 29′ 9″ | 12.79 | 41′ 12″ | 12.6 | 41′ 4″ | / | / | 13 | 42′ 8″ | 13.66 | 44′ 10″ | 16.1 | 52′ 10″ |
| Width(stowed) | m | 2.28 | 7′ 6″ | 2.38 | 7′ 10″ | 2.58 | 8′ 6″ | 2.58 | 8′ 6″ | 2.49 | 8′ 2″ | 2.49 | 8′ 2″ | 2.49 | 8′ 2″ | 2.49 | 8′ 2″ |
| Height(stowed) | m | 2.63 | 8′ 8″ | 2.58 | 8′ 6″ | 2.87 | 9′ 5″ | 2.95 | 9′ 8″ | 3.08 | 10′ 1″ | 3.1 | 10′ 2″ | 3.14 | 10′ 4″ | 3.4 | 11′ 2″ |
| Lift capacity maximum | kg | 230kg(507lbs) | 230kg(508lbs) | 300/480kg(661/1058lbs) | 300/480kg(661/1058lbs) | 480kg(1058lbs) | 480kg(1059lbs) | 480kg(1060lbs) | 480kg(1061lbs) | ||||||||
| Drive & steer mode | 4x4x2 | 4x4x2 | 4x4x2 | 4x4x2 | 4x4x4 | 4x4x4 | 4x4x4 | 4x4x4 | |||||||||
| Engine Power | kW | About 36kW@2400rpm~2600rpm | About 36kW@2400rpm~2600rpm | About 36kW@2400rpm~2600rpm | About 36kW@2400rpm~2600rpm | About 54kW@2400rpm~2600rpm | About 54kW@2400rpm~2600rpm | About 54kW@2400rpm~2600rpm | 约74kw@2200rpm | ||||||||
| Fuel tank capacity | L | 100 | 100 | 151 | 151 | 151 | 151 | 151 | 200 | ||||||||
| Hydraulic tank capacity | L | 110 | 110 | 110 | 160 | 250 | 250 | 250 | 300 | ||||||||
| Control voltage | V | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 24 | ||||||||
| Weight | kg | 7500kg(16535lbs) | 9500kg(20945lbs) | 16800kg(30378lbs) | 19500kg(42990lbs) | 21800kg(48061lbs) | 24600kg(54234lbs) | 23110kg(50949lbs) | 28500kg(62832lbs) | ||||||||
PARTS DETAILS

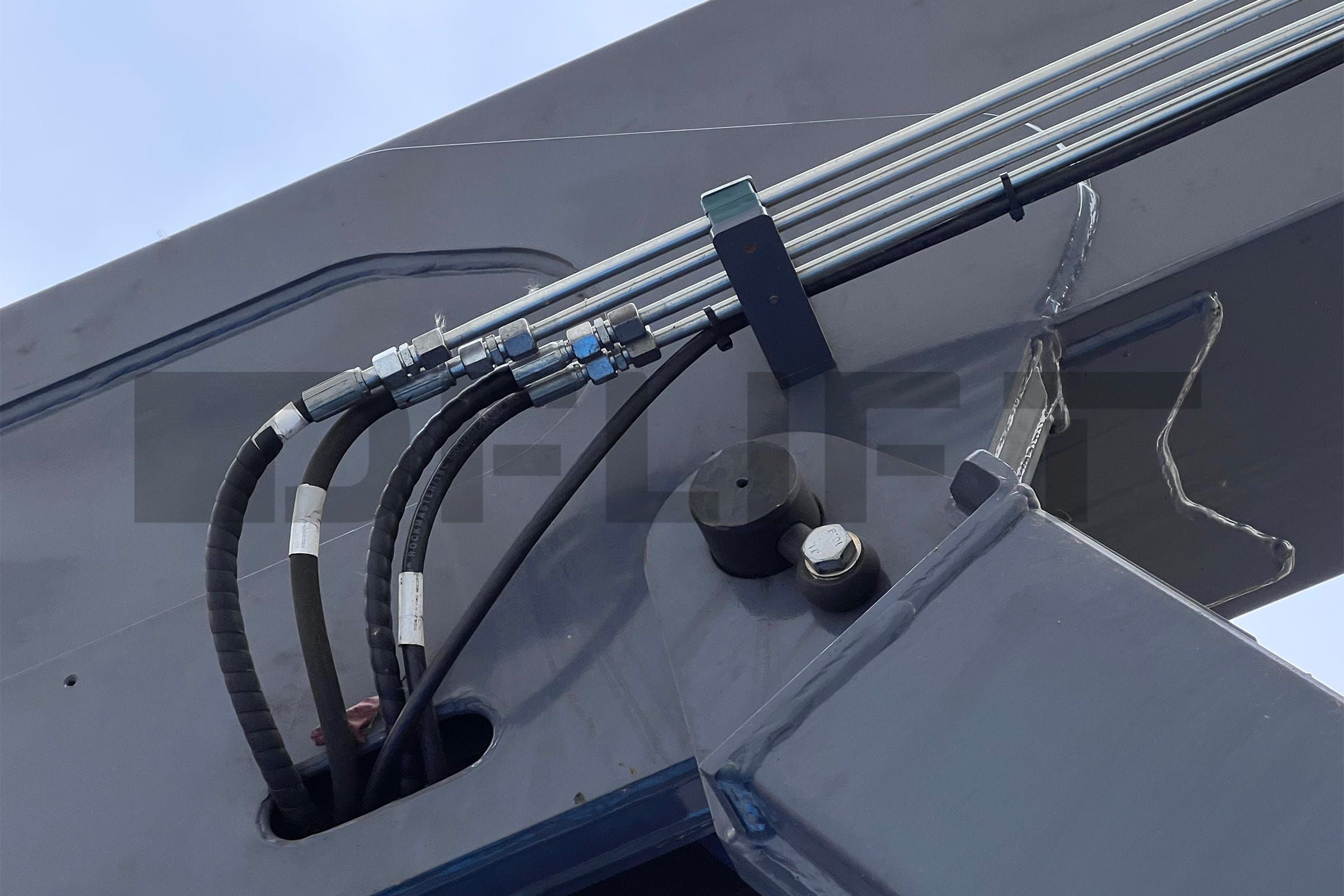

Large arm

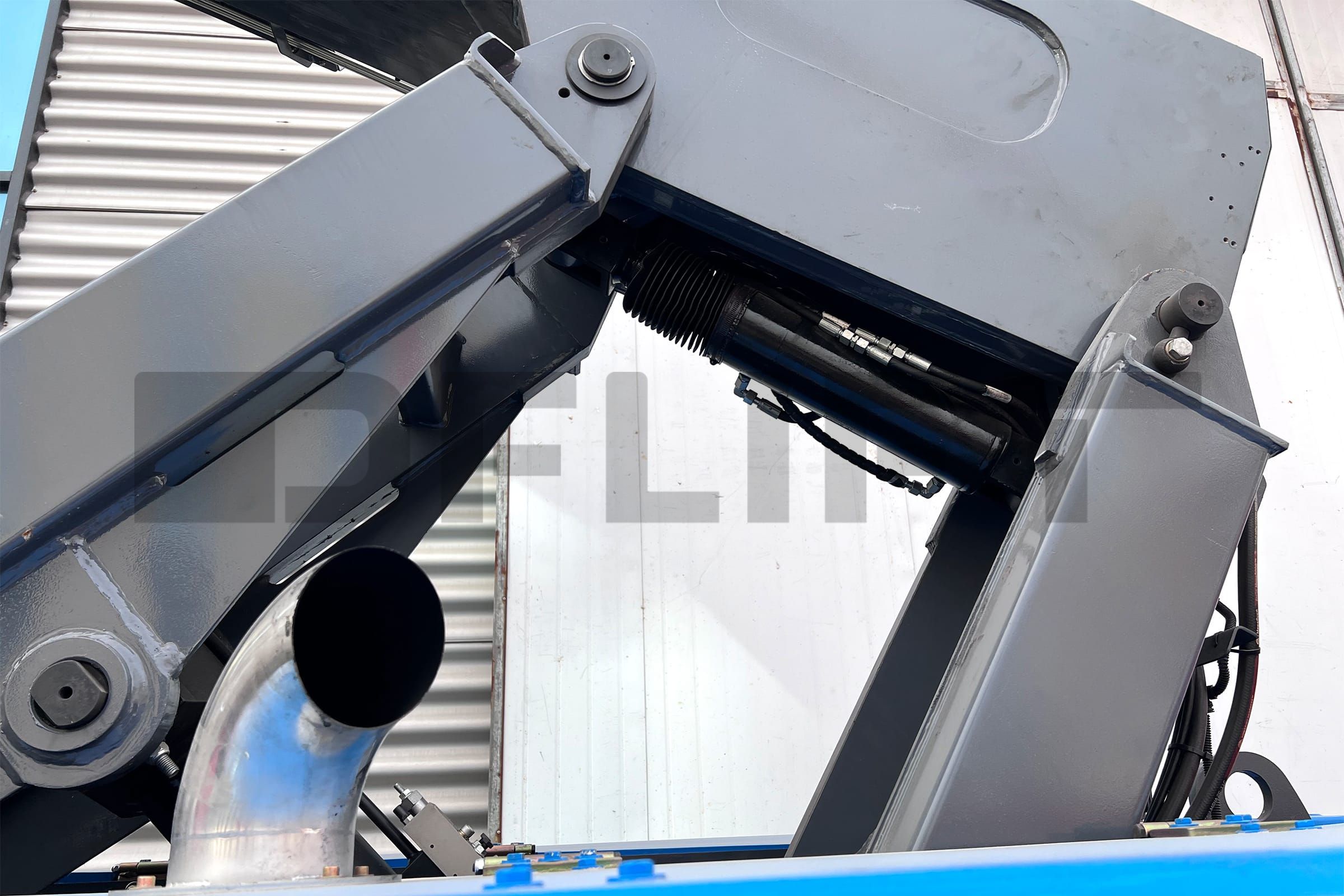

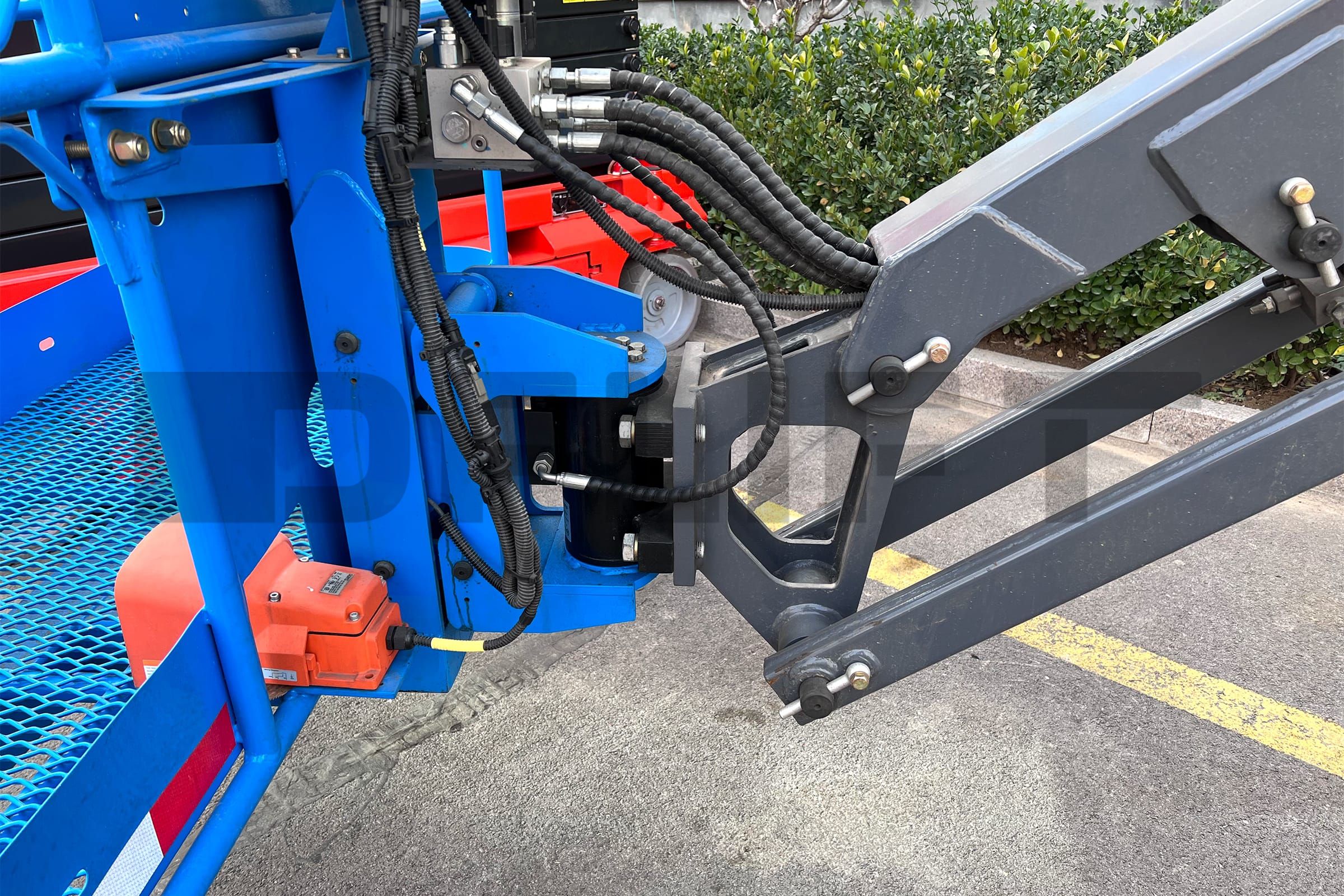

Arm of Boom

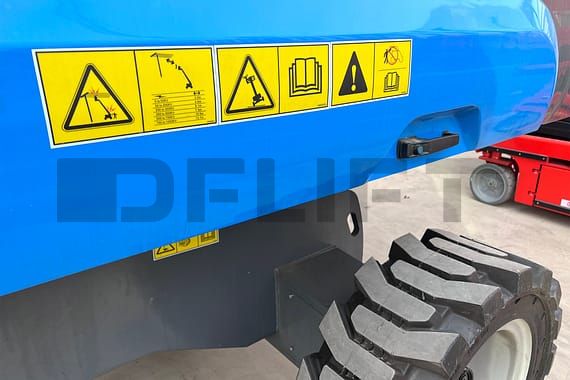

Oil Tank

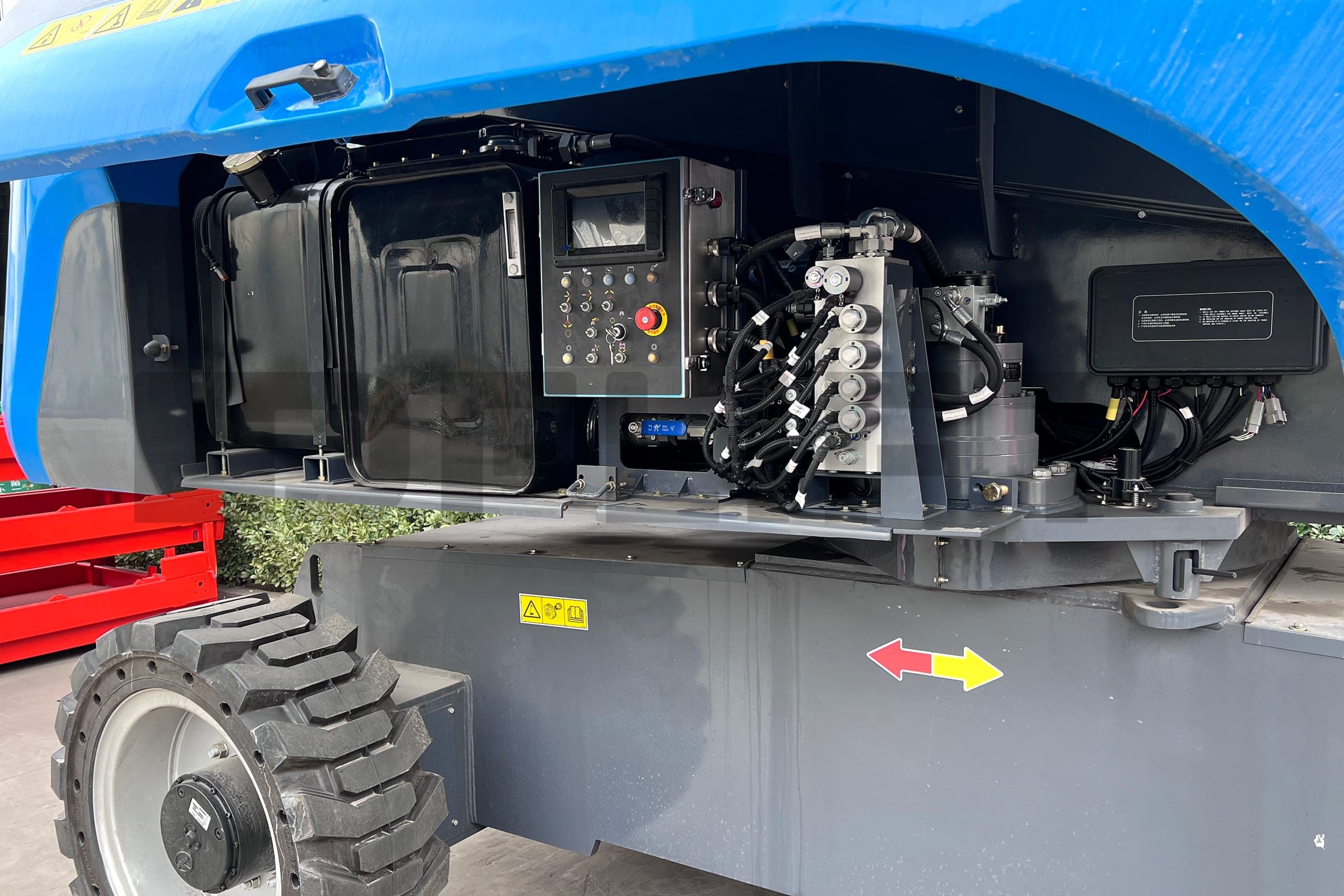

Swing mechanism and valve

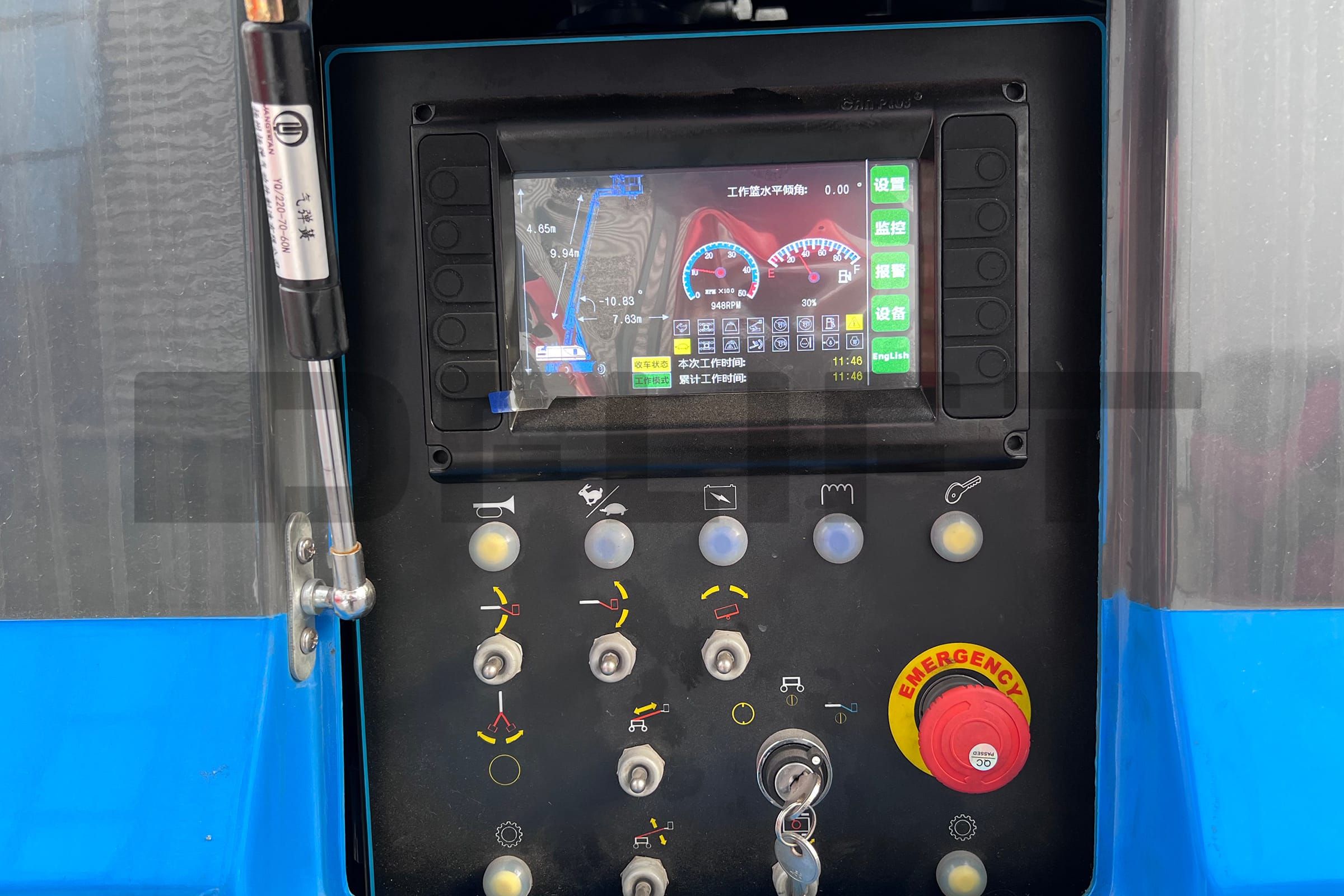

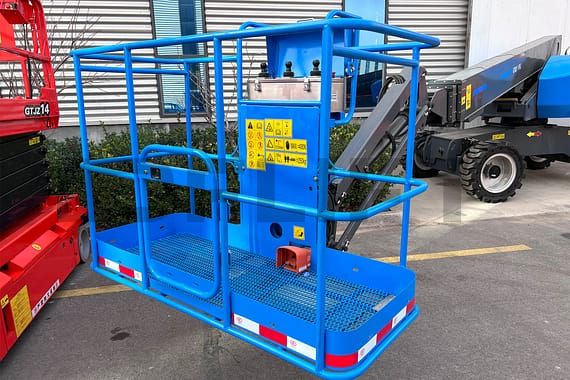

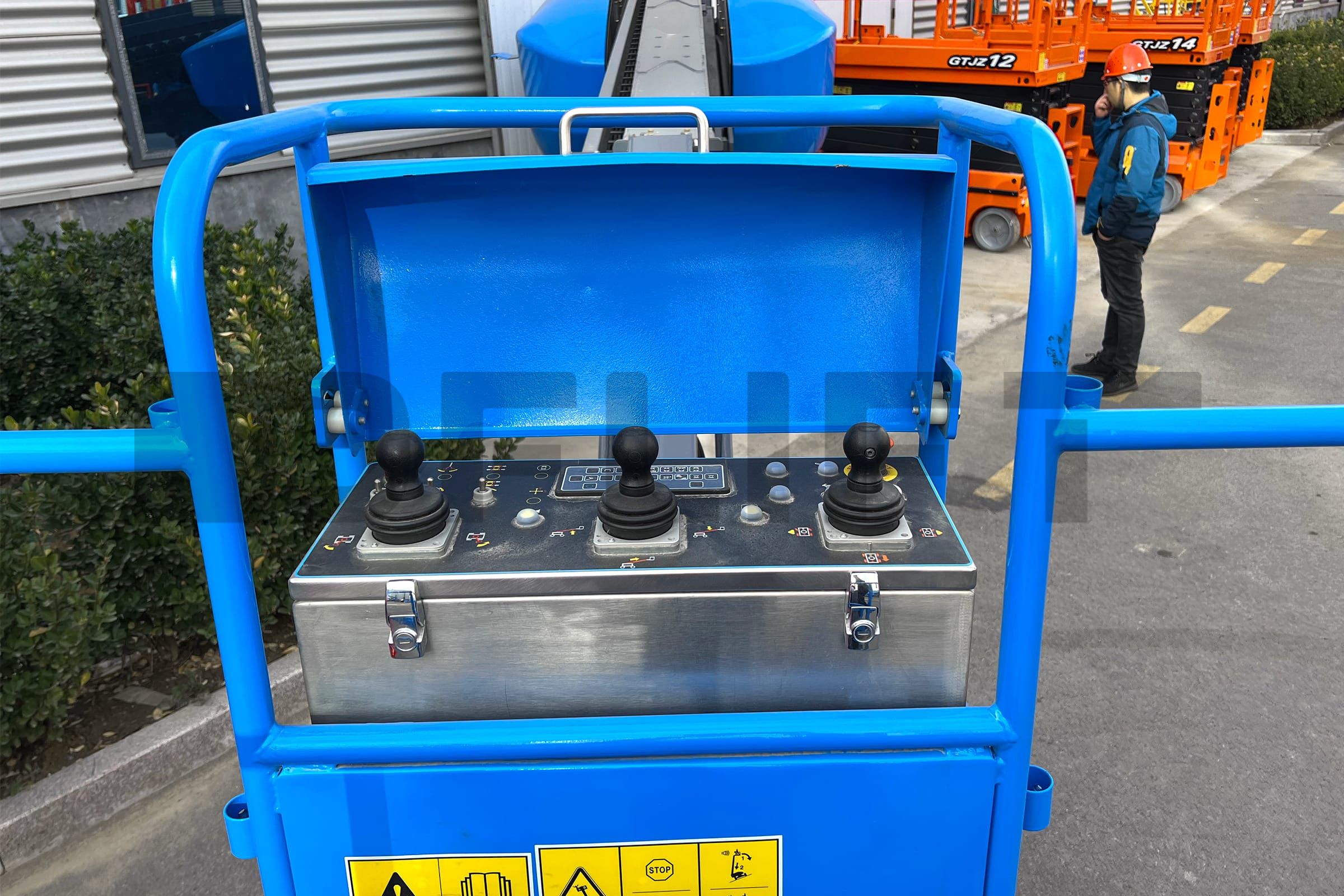

Upper control panel
Control Panel

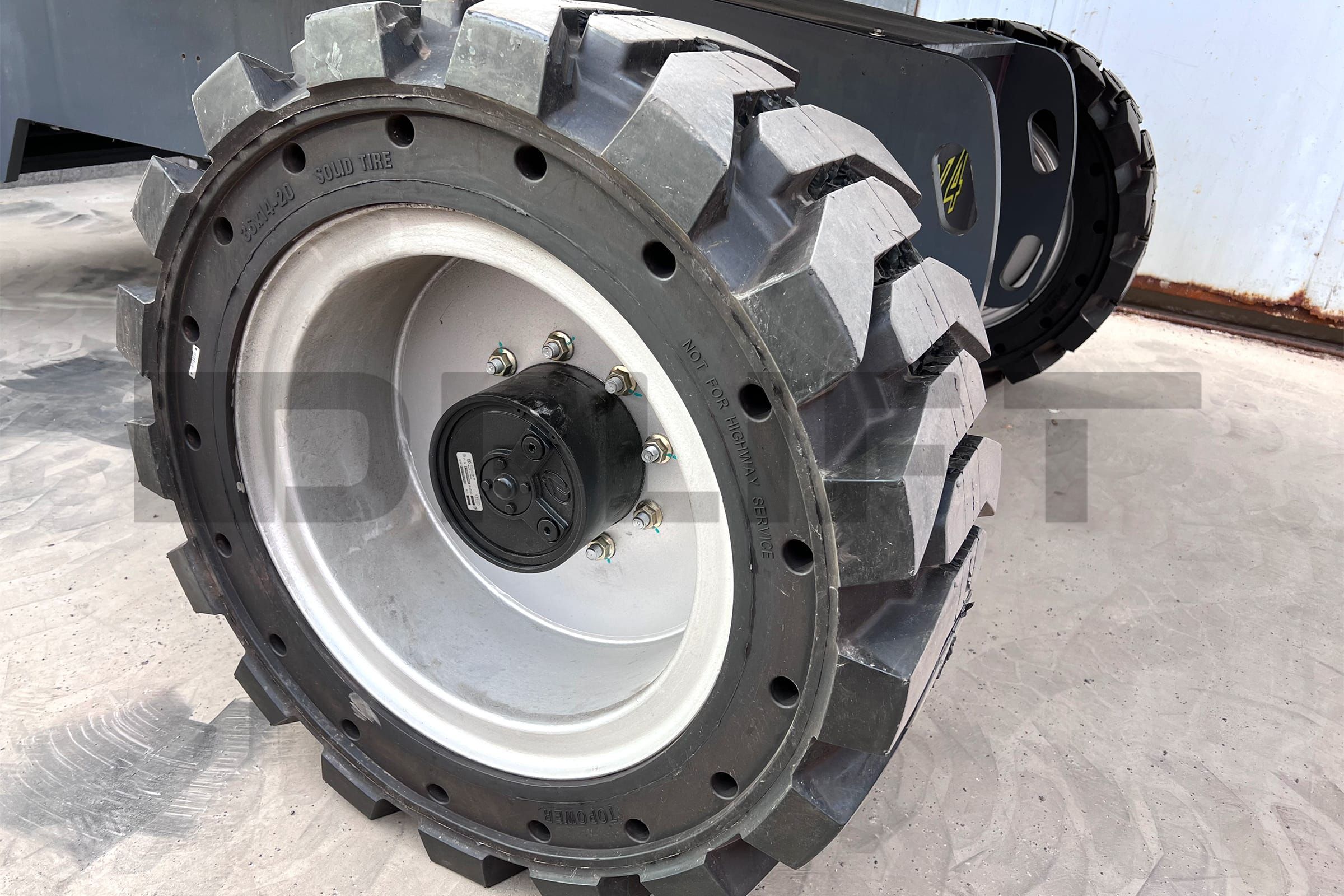

Wheel connecting shaft
Valve
