Introduction
Ride on pallet truck is suitable for heavy duty and longtime cargo transport conditions, It uses electronic steering, more energy saving, high-power traction battery and motor, can greatly improve the cargo handling efficiency, reduce labor intensity. With operation guard arm to protect operator safety. Ride on pallet truck
ADVANTAGEs
- Integral motor drive system (including electromagnetic brake)
- High quality large capacity lead acid battery optional lithium battery
- Equipped with wide operation handrails and anti-skid operation pedals
- Uphill auxiliary braking
- Drive wheel damping system
- Charge for 8 hours, continuous work for 12 hours
Technical parameters
| Items | Parameters | |||||
|---|---|---|---|---|---|---|
| FEATURES | 1.1 | Model | EPTE-20 | EPTE-25 | EPTE-30 | |
| 1.2 | Power Type | Lead acid battery / Optional Lithium battery | ||||
| 1.3 | Operation Type | Standing-driving | Standing-driving | Standing-driving | ||
| 1.4 | Rated Capacity | kg | 2000 | 2500 | 3000 | |
| 1.5 | Load Center | mm | 500 | 500 | 500 | |
| 1.6 | Lifting Height | mm | 200 | 200 | 200 | |
| DIMENSIONS | 2.1 | Overall Dimension(L/W/H) | mm | 1950×720×1280 | 1950×720×1280 | 1950×720×1280 |
| 2.2 | Fork Sizes | mm | 1150×160×50 | 1150×160×50 | 1150×160×50 | |
| 2.3 | Fork Width Min./Max. | mm | 550/685 | 550/685 | 550/685 | |
| 2.4 | Min. Ground Clearance | mm | 25 | 25 | 25 | |
| 2.5 | Turning Radius | mm | 1850 | 1850 | 1850 | |
| 2.6 | Min.Right Angle Channel Width | mm | 2330 | 2330 | 2330 | |
| WEIGHT | 3.1 | Self-weight(with battery) | kg | 500 | 600 | 600 |
| 3.2 | Battery Weight | kg | 30 | 30 | 30 | |
| WHEEL | 4.1 | Wheel Type(driving/turning) | Solid PU | Solid PU | Solid PU | |
| 4.2 | Driving Wheel Sizes | mm | 252×88 | 252×88 | 252×88 | |
| 4.3 | Loading Wheel Sizes | mm | 80×70 | 80×85 | 80×85 | |
| DRIVING＆CONTROL | 5.1 | Driving Motor | kw(60min) | 1.2 | 2.2 | 2.2 |
| 5.2 | Lifting Motor | kw(60min) | 1.5 | 1.5 | 2.2 | |
| 5.3 | Battery Dimension | mm | 271×174×213 | 271×174×213 | 271×174×213 | |
| 5.4 | Battery Voltage/Capacity | V/ah | 2×12/210 | 2×12/210 | 2×12/210 | |
| 5.5 | Controller | AC | AC | AC | ||
| 5.6 | Working Pressure | mpa | 14 | 14 | 14 | |
| PERFORMANCE | 6.1 | Travel speed(laden/unladen) | km/h | 4.5/5 | 4.5/5 | 4.5/5 |
| 6.2 | Lifting speed(laden/unladen) | mm/s | 30/34 | 30/34 | 30/34 | |
| 6.3 | Max Climbing Ability | % | 10 | 10 | 10 | |
| 6.4 | Braking | electromagnetic induction | electromagnetic induction | electromagnetic induction | ||
| OTHERS | 7.1 | Driving Type | Electric | Electric | Electric | |
| 7.2 | Steering System | Electric | Electric | Electric | ||
| 7.3 | Noise Level | 63 | 63 | 63 | ||
| 7.4 | Waterproof Grade | IPX4 | IPX4 | IPX4 | ||
PARTS SHOW
Power display

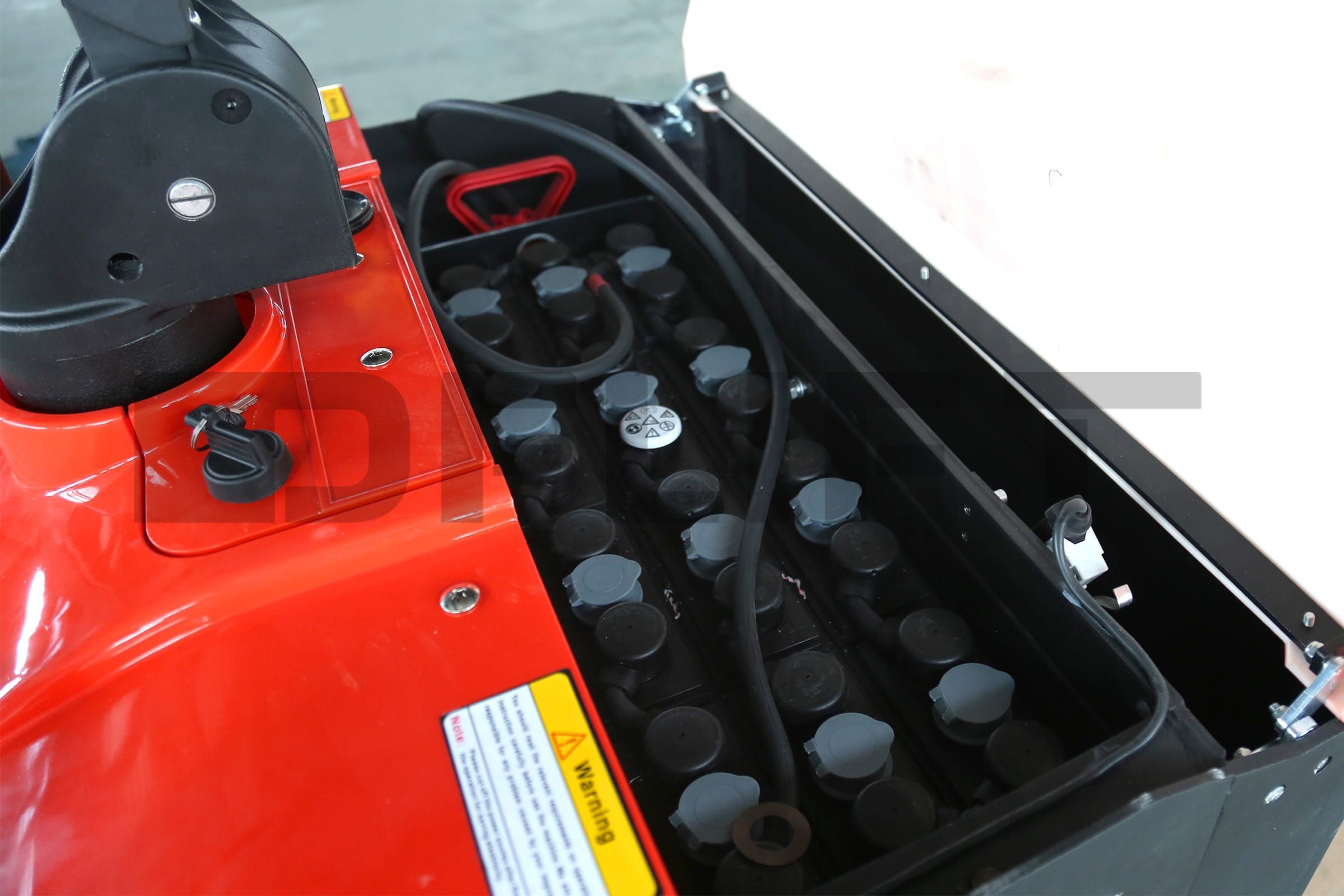

Large capacity battery pack
Electric steering
