introduction

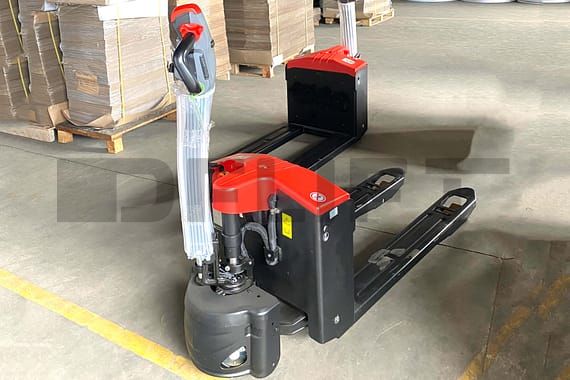

The carrying capacity of the electric pallet truck is 1500kg-2000kg. And the walking and lifting are all driven by batteries, which greatly saves labor and labor time to improve work efficiency. Optional lithium battery which has the advantages of environmental protection and energy saving.
Advantage
Small size, light weight, simple operation;
Energy-saving and environmental friendly, lower cost;
More convenient for maintenance.
Specification
Type | DFT15ET2 | DFT20ET |
---|---|---|
Load Capacity | 1500kg | 2000kg |
Power | Lead-acid battery / lithium battery optional | |
Self Weight (Kg) | 195 | 220 |
Wheel Material | Polyurethane | Polyurethane |
Drive Wheel Size (mm) | Ф210×70 | Ф250×74 |
Load Wheel Size (mm) | 2xФ78×60 | 2xФ78×60 |
Lifting Height (mm) | 115 | 140 |
Overall Width | 560(680) | 560(685) |
Vehicle Length (mm) | 1638 | 1685 |
Fork Dimensions (mm) | 560(680) | 560(685) |
Turning Radius (mm) | 1485 | 1390 |
Travel Speed, Loaded/Unloaded (Km/H) | 4/4.5 | 4/5.5 |
Lifting Speed, Loaded/Unloaded (mm/S) | 27/38 | 18/37 |
Lowering Speed, Loaded/Unloaded (mm/S) | 59/39 | 32/28 |
Maximum Grade, Loaded/Unloaded (%) | 5/16 | 8/16 |
Voltage/Battery Capacity | 2x12V/65Ah | 4*12/30Ah |
Parts show

Cable harness optimization

Double Bearing Wheel

Drive Wheel Protection

Emergency Stop

Multi-function handle

Shock mitigation system
