Introduction
3 wheel electric forklift is an electric forklift used in warehousing and logistics, usually for handling and stacking goods. Its design features three support points, which improves stability and flexibility. Three wheel electric forklifts are usually equipped with battery power, which reduces noise and exhaust emissions and is suitable for use in indoor environments.
Main features include
- Famous brand electronic control, controller with multiple automatic protection systems.
- EPS steering energy consumption is reduced by ~20%, operation is precise, steering is light and flexible, driver fatigue is reduced, and productivity is greatly improved.
- Vertical AC drive, brushless, maintenance-free, high-efficiency motor, precise control, strong power output.
- Small size, light weight, small turning radius, easy to enter the elevator, suitable for operation on floors and in carriages, improving passability and space utilization.
- The front wheel is a solid rubber tire with strong grip and smooth operation.
- The mast is designed with a buffer system and forward and backward tilting functions.
- The temporary parking of the forklift on the ramp adopts a dual insurance method of electronic control automatic and foot braking to provide safety protection for the vehicle parking on the ramp.
Technical parameters
| Item | ||||||
|---|---|---|---|---|---|---|
| 1.1 | Model | CPDS12 | CPDS16 | CPDS20 | ||
| 1.2 | Power Type | Battery | Battery | Battery | ||
| 1.3 | Operation type | Ride-on | Ride-on | Ride-on | ||
| 1.4 | Load | Q | kg | 1200 | 1600 | 2000 |
| 1.5 | Load center distance | C | mm | 500 | 500 | 500 |
| 1.6 | Front overhang | X | mm | 340 | 340 | 340 |
| 1.7 | Wheelbase | y | mm | 1440 | 1540 | 1606 |
| Weight | ||||||
| 2.1 | Weight (including battery) | kg | 1900 | 2500 | 2900 | |
| Tyre, Chassis | ||||||
| 3.1 | Tyre type (front/rear) | Pneumatic/solid tire | Pneumatic/solid tire | Pneumatic/solid tire | ||
| 3.2 | Front wheel size(D*W) | mm | 500-8 | 18*7-10 | 18*7-10 | |
| 3.3 | Rear wheel size(D*W) | mm | 15*4.5-8 | 15*4.5-8 | 15*4.5-8 | |
| 3.4 | Driving/steering wheels | mm | 2*2/2 | 2*2/2 | 2*2/2 | |
| 3.5 | Front wheel track | b10 | mm | 950 | 950 | 960 |

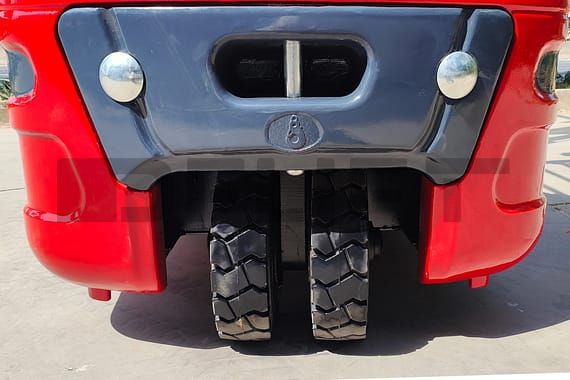

| 3.6 | Rear wheel track | b11 | mm | 180 | 180 | 180 |
| Dimension | ||||||
| 4.1 | Frame angle forward/backward | α/ β (°) | 5/9 | 5/9 | 5/9 | |
| 4.2 | Mast lifting/can’t lift height | h1 | mm | 2150 | 2150 | 2140 |
| 4.3 | Standard maximum lifting height | h3 | mm | 3000 | 3000 | 3000 |
| 4.4 | Height of the gantry when maximum lifting | h4 | mm | 3960 | 3960 | 3960 |
| 4.5 | Safety frame height | h6 | mm | 2120 | 2120 | 2120 |
| 4.6 | Seat surface height | h7 | mm | 1050 | 1080 | 1100 |
| 4.7 | Center height of traction pin | h10 | mm | 550 | 550 | 650 |
| 4.8 | Vehicle length | l1 | mm | 3060 | 3170 | 3270 |
| 4.9 | The length of the vertical plane of the fork | l2 | mm | 1950 | 2060 | 2160 |
| 4.10 | Vehicle width | b1/ b2 | mm | 1100 | 1100 | 1100 |
| 4.11 | Fork size T/W/L | s/ e/ l | mm | 32*100*1070 | 35*100*1070 | 40*100*1070 |
| 4.12 | Fork outside width | b3 | mm | 1040 | 1040 | 1040 |
| 4.13 | Full load ground clearance | m1 | mm | 110 | 110 | 110 |
| 4.14 | Minimum ground clearance | m2 | mm | 100 | 100 | 80 |
| 4.15 | Channel width for pallet(1200*1000mm) | Ast | mm | 3250 | 3360 | 3460 |
| 4.16 | Channel width for pallet(800*1200mm) | Ast | mm | 3450 | 3560 | 3660 |
| 4.17 | Minimum turning radius | Wa | mm | 1590 | 1690 | 1793 |
| Product parameters | ||||||
| 5.1 | Driving speed (laden/unladen) | km/ h | 9/11 | 9/11 | 9/11 | |
| 5.2 | Lifting speed (full load/no load) | m/ s | 0.24/0.3 | 0.24/0.3 | 0.24/0.3 | |
| 5.3 | Lowering speed (full load/no load) | m/ s | 0.39/0.34 | 0.39/0.34 | 0.39/0.34 | |
| 5.4 | Maximum grade ability(full load/no load) | % | 15 | 15 | 15 | |
| 5.5 | Service brake type | Hydraulic+Mechanical | Hydraulic+Mechanical | Hydraulic+Mechanical | ||
| 5.6 | Parking brake type | Mechanical | Mechanical | Mechanical | ||
| Motor, Power Source | ||||||
| 6.1 | Drive motor rated outputS2 60min | kW | 4 | 5 | 5.5 | |
| 6.2 | Lifting motor rated outputS3 15% | kW | 4 | 5 | 5.5 | |
| 6.3 | Battery voltage/nominal capacity K5 | Ah | 48V260 | 48V/300 | 48V350 | |
| 6.4 | Drive control type | AC | AC | AC | ||
